WIDE PITCH PERMANENT MAGNETIC CHUCK

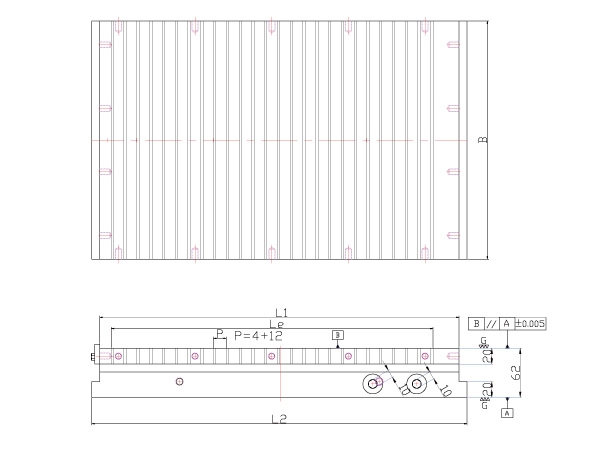

HMT-C 大間距永磁夾盤WIDE PITCH PERMANENT MAGNETIC CHUCK Application: For high precision milling and grinding machine,powerful permanent magnetic chuck. Features: Excellent water resistant to allow whole chuck to be used in the liquid. Average magnetic force beyond 15kg/cm . Uniform holding power. The variation accuracy stays within 0.002mm when ON/OFF switching. Double switches for chucks larger than 300mm. The brazing top plate makes rigidity excellent and accuracy stable. Unit:mm ModelNominalDimensionTop PlateBottom PlateWeight (kg) BL1LeL2 HMT-2020C 200x200 200 200 148 220 19 HMT-2040C 200x400 400 345 420 39 HMT-2045C 200x450 450 402 470 43 HMT-2050C 200x500 500 452 520 48 HMT-2525C 250x250 250 250 196 270 30 HMT-2550C 250x500 500 452 520 60 HMT-3030C 300x300 300 300 260 320 43 HMT-3040C 300x400 400 345 420 58 HMT-3050C 300x500 500 452 520 73 HMT-3060C 300x600 600 548 620 87 HMT-4040C 400x400 400 400 345 420 77 HMT-4050C 400x500 500 452 520 97 HMT-4060C 400x600 600 548 620 116 *本規格外之尺寸，歡迎訂製。 *Other specifications can be custom-made upon request.
