PERMANENT MAGNETIC CHUCK
(VERTICAL TYPE)
Product Introduction
SMW 垂直型永磁夾盤

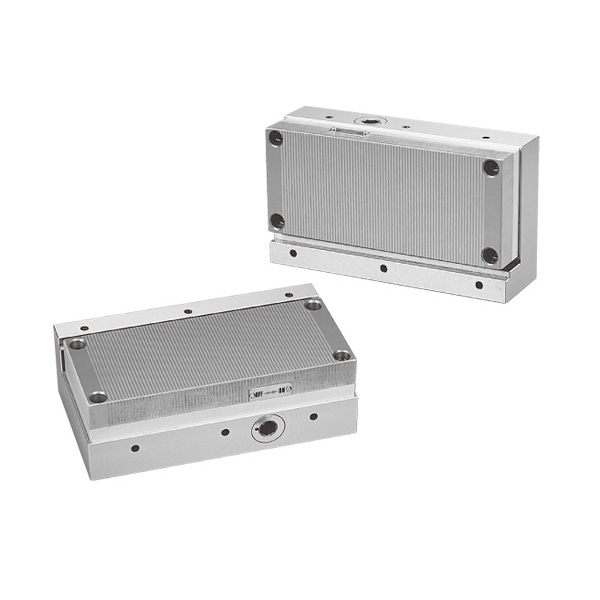

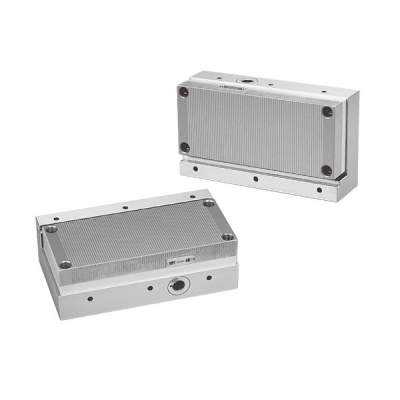

PERMANENT MAGNETIC CHUCK (VERTICAL TYPE)
Application: Suitable for inspecting squareness workpiece or for keeping workpieces vertical/horizontal by magnetic force.
Features:
- 6 face ground at accuracy in 0.002 mm.
- Made up of HRC 56° SKD-11, with tempering and subzero treatment for keeping the accuracy stability.
- The brazing top plate absolutely free from pin holes.
- No distortion in turn ON/OFF process.
- Excellent durability and abrasion resistant.
Unit:mm

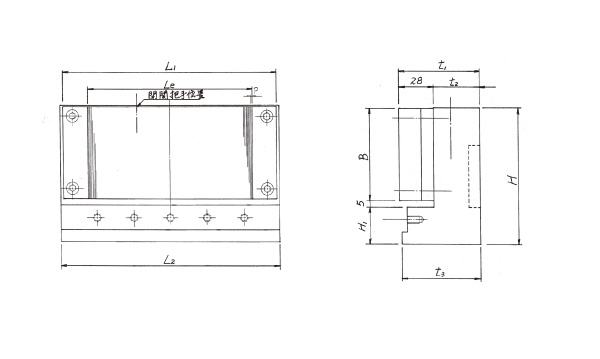

| Model | Nominal Dimension | Top Plate | Pole Pitch | Bottom Plate | Thickness | Height | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | l1 | Le | P | l2 | t3 | t1 | t2 | H | H1 | |||
| SMW-0818 | 75x175 | 75 | 175 | 130 | 2 (1+1) |
179 | 64 | 66 | 38 | 111 | 30 | 10 |
| SMW-1018 | 100x175 | 100 | 175 | 130 | 179 | 78 | 68 | 40 | 140 | 30 | 13 | |
| SMW-1325 | 125x250 | 125 | 250 | 205 | 254 | 83 | 73 | 45 | 163 | 32 | 23 | |
