CIRCULAR MAGNETIC CHUCK ON TURNTABLE
Product Introduction
RT 搭載型旋轉台

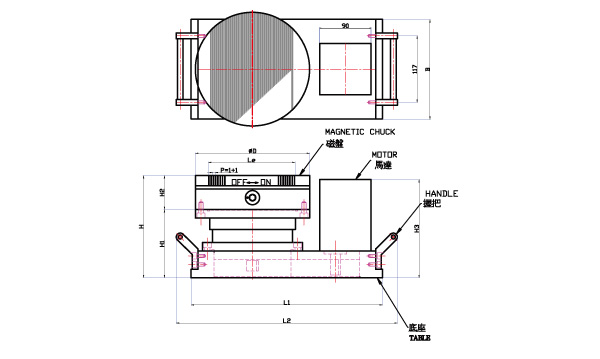

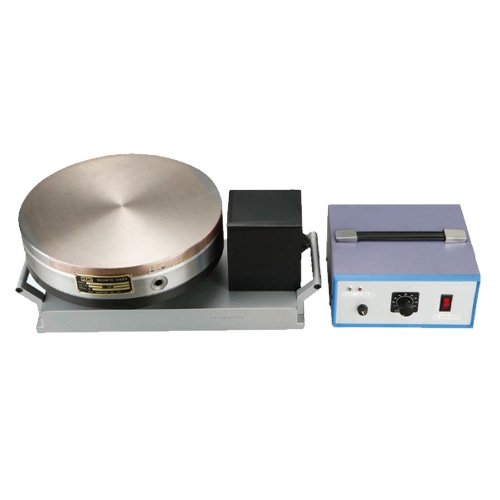

CIRCULAR MAGNETIC CHUCK ON TURNTABLE
Application: For rotary grinding, mounted on surface grinding machine.
Features:
- Deflection ±0.002mm.
- Flatness accuracy, tolerance within 0.002mm on range ø300mm.
- Rotary range 20~125rpm/min.
Unit:mm
| Model | Top Plate | Power Source | Dimension | Weight (kg) | Torque (kg-cm) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| øD | Le | H2 | Voltage | Power | B | L1 | L2 | H1 | H3 | |||
| RT-16 | ø160 | 115 | 58 | 1Phase AC 110V / 220V |
120W | 175 | 335 | 387 | 122 | 180 | 28 | 4 |
| RT-20 | ø200 | 155 | 46 | |||||||||
| RT-25 | ø250 | 205 | 200W | 410 | 462 | 183 | 64 | 8 | ||||
| RT-30 | ø300 | 255 | 63 | 137 | 88 | |||||||
| RT-36 | ø360 | 300 | 250 | 530 | 576 | 200 | 142 | |||||
| RT-40 | ø400 | 340 | 155 | |||||||||
