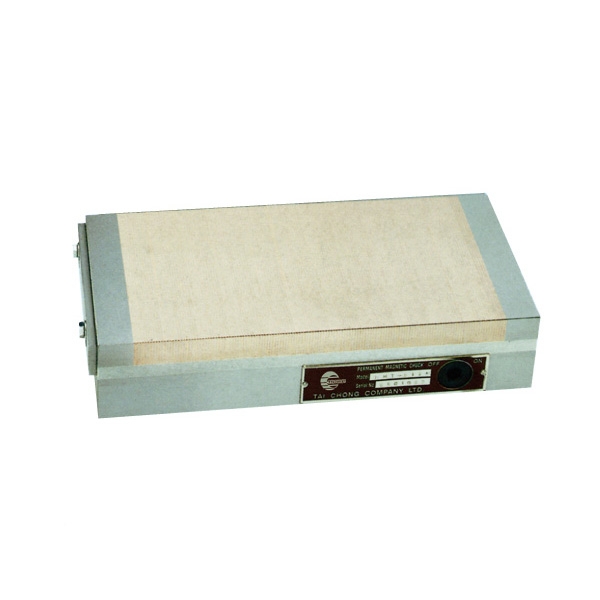

Product Name : POWERFUL MICROPITCH PERMANENT MAGNETIC CHUCK
Inquiry
Product Introduction

HMTW-B 耐久型永磁細目夾盤
POWERFUL MICROPITCH PERMANENT MAGNETIC CHUCK

proimages/2014-pro/HMTW-B_001.jpg
Application: Suitable for surface grinding machine, EDM , and projection of grinding machine.
Features:
  • Dual switches for chucks larger than 300mm in width.
  • High antirust magnets adopted.
  • Smoothly turning on/off magnetic force.
  • The inner design ensures durability and abrasion resistant.
  • No flatness deflection during ON/OFF switching.
  • The brazing top plate secures the flatness.
  • Excellent water resistant, enables to be used in liquid.

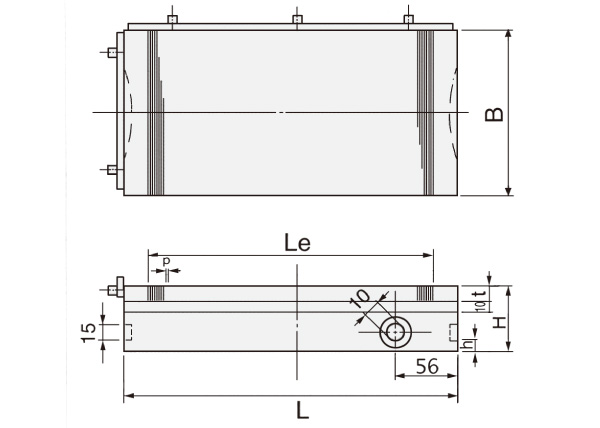

Unit:mm
ModelNominal
Dimension		Top PlateBottom PlateHeightWeight (kg)
BLLeBLhH
HMTW-0813B 75x130 75 130 85 75 130 10 52 4.0
HMTW-0818B 75x175 175 125 175 5.5
HMTW-0830B 75x300 300 246 300 9.0
HMTW-1018B 100x175 100 175 125 100 175 7.0
HMTW-1325B 125x250 125 250 205 125 250 12 12.0
HMTW-1515B 150x150 150 150 110 150 150 9.0
HMTW-1530B 150x300 300 246 300 58 20.0
HMTW-1535B 150x350 350 296 350 24.0
HMTW-1540B 150x400 400 346 400 27.5
HMTW-1545B 150x450 450 390 450 31.0
HMTW-2040B 200x400 200 400 346 200 400 37.0
HMTW-2045B 200x450 450 390 450 41.5
HMTW-2050B 200x500 500 446 500 46.0
HMTW-2525B 250x250 250 250 205 250 270 20 29.0
HMTW-2535B 250x350 350 296 370 40.5
HMTW-2540B 250x400 400 346 420 46.0
HMTW-2545B 250x450 450 390 470 52.0
HMTW-2550B 250x500 500 446 520 58.0
HMTW-2560B 250x600 600 546 620 69.0
HMTW-3030B 300x350 300 300 246 300 320 41.5
HMTW-3035B 300x400 350 296 370 48.5
HMTW-3040B 300x450 400 346 420 55.5
HMTW-3045B 300x450 450 390 470 62.5
HMTW-3050B 300x500 500 446 520 69.0
HMTW-3060B 300x600 600 546 620 83.0
