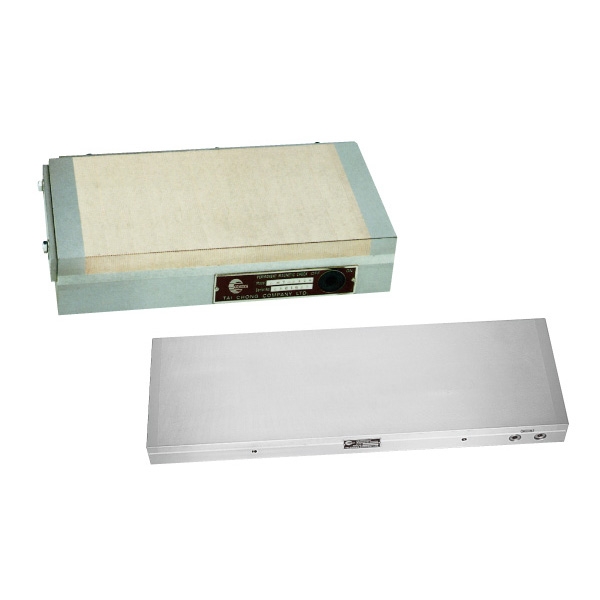

POWERFUL MICROPITCH PERMANENT MAGNETIC CHUCK
Product Introduction
HMTW-A 強力永磁細目夾盤
POWERFUL MICROPITCH PERMANENT MAGNETIC CHUCK
Application: Suitable for surface grinding machine.
Features:
- ON/OFF switching doesn't influence plate flatness.
- The fine-pitched magnetic poles make it ideally suitable for small and thin workpieces.
- Brazing treatment protects the top plate from coolant corrosion.
- Strong holding power, residual magentism reduced.
- Specially designed for high precision operation.
- Copper pole pitch top plate.
- Dual switches for chucks larger than 300mm in width.
- Excellent water resistant, enables to be used in liquid.
Unit:mm

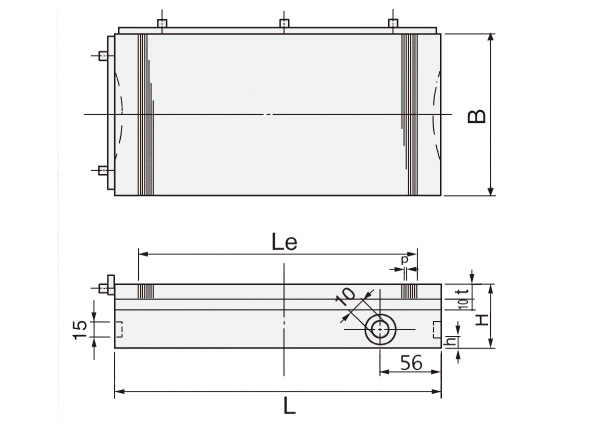

| Model | Nominal Dimension | Top Plate | Pole Pitch | Bottom Plate | Height | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| B | L1 | Le | t | P | B | L | h | H | |||
| HMTW-0813A | 75x130 | 75 | 130 | 85 | 18 | (紅銅) copper 2 (1+1) |
75 | 130 | 10 | 58 | 4.0 |
| HMTW-0818A | 75x175 | 175 | 125 | 175 | 5.5 | ||||||
| HMTW-0830A | 75x300 | 300 | 246 | 300 | 52 | 9.0 | |||||
| HMTW-1018A | 100x175 | 100 | 175 | 125 | 100 | 175 | 7.0 | ||||
| HMTW-1325A | 125x250 | 125 | 250 | 205 | 125 | 250 | 12 | 12.0 | |||
| HMTW-1515A | 150x150 | 150 | 150 | 110 | 150 | 150 | 9.0 | ||||
| HMTW-1530A | 150x300 | 300 | 246 | 300 | 58 | 20.0 | |||||
| HMTW-1535A | 150x350 | 350 | 296 | 350 | 24.0 | ||||||
| HMTW-1540A | 150x400 | 400 | 346 | 400 | 27.5 | ||||||
| HMTW-1545A | 150x450 | 450 | 390 | 450 | 31.0 | ||||||
| HMTW-2040A | 200x400 | 200 | 400 | 346 | 200 | 400 | 37.0 | ||||
| HMTW-2045A | 200x450 | 450 | 390 | 450 | 41.5 | ||||||
| HMTW-2050A | 200x500 | 500 | 446 | 500 | 46.0 | ||||||
| HMTW-2525A | 250x250 | 250 | 250 | 205 | 250 | 270 | 20 | 29.0 | |||
| HMTW-2535A | 250x350 | 350 | 296 | 370 | 40.5 | ||||||
| HMTW-2540A | 250x400 | 400 | 346 | 420 | 46.0 | ||||||
| HMTW-2545A | 250x450 | 450 | 390 | 470 | 52.0 | ||||||
| HMTW-2550A | 250x500 | 500 | 446 | 520 | 58.0 | ||||||
| HMTW-2560A | 250x600 | 600 | 546 | 620 | 69.0 | ||||||
| HMTW-3030A | 300x300 | 300 | 300 | 246 | 300 | 320 | 41.5 | ||||
| HMTW-3035A | 300x350 | 350 | 296 | 370 | 48.5 | ||||||
| HMTW-3040A | 300x400 | 400 | 346 | 420 | 55.5 | ||||||
| HMTW-3045A | 300x450 | 450 | 390 | 470 | 62.5 | ||||||
| HMTW-3050A | 300x500 | 500 | 446 | 520 | 69.0 | ||||||
| HMTW-3060A | 300x600 | 600 | 546 | 620 | 83.0 | ||||||
| HMTW-3090A | 300x900 | 900 | 840 | 20 | 920 | 60 | 127.0 | ||||
| HMTW-1018AB | 100x175 | 100 | 175 | 125 | 18 | 100 | 175 | 10 | 47 | 6.0 | |
| HMTW-1515AB | 150x150 | 150 | 150 | 100 | 150 | 150 | 12 | 8.0 | |||
| HMTW-1530AB | 150x300 | 300 | 246 | 300 | 17.0 | ||||||
| HMTW-1535AB | 150x350 | 350 | 296 | 350 | 19.5 | ||||||
| HMTW-1540AB | 150x400 | 400 | 346 | 400 | 22.5 | ||||||
| HMTW-1545AB | 150x450 | 450 | 390 | 450 | 25.0 | ||||||
