DUAL FACE TYPE PERMANENT MAGNETIC CHUCK
Product Introduction

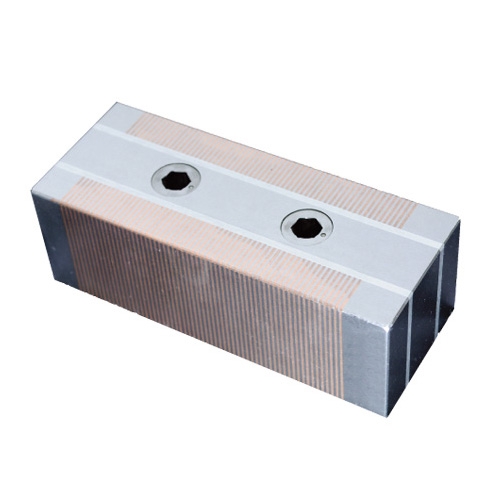

HMTW-2F 兩面吸著永磁夾盤
DUAL FACE TYPE PERMANENT MAGNETIC CHUCK
Application: Suitable for surface grinding machine, EDM, and test & measurement application.
Features:
- Light weight, easy operation.
- Excellent Water resistant.
- Not only the both sides, but also side faces can hold workpieces.

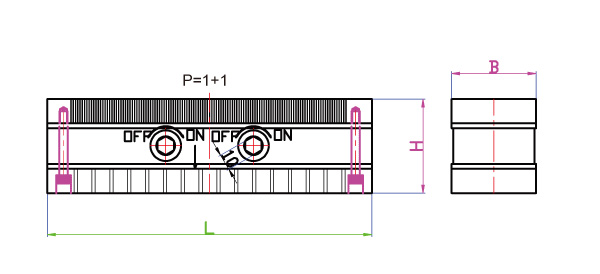

Unit:mm
| Model | Nominal Dimension | Dimension | Weight (kg) | ||
|---|---|---|---|---|---|
| B | L | H | |||
| HMTW-2F 15 | 50x150 | 50 | 150 | 58 | 3.5 |
| HMTW-2F 20 | 50x200 | 200 | 4.7 | ||
| HMTW-2F 25 | 50x250 | 250 | 5.9 | ||
