POWERFUL CIRCULAR TYPE PERMANENT MAGNETIC CHUCK
(FOR ALLOY MATERIAL)
Product Introduction
HMTR 鎢鋼用圓形永磁夾盤

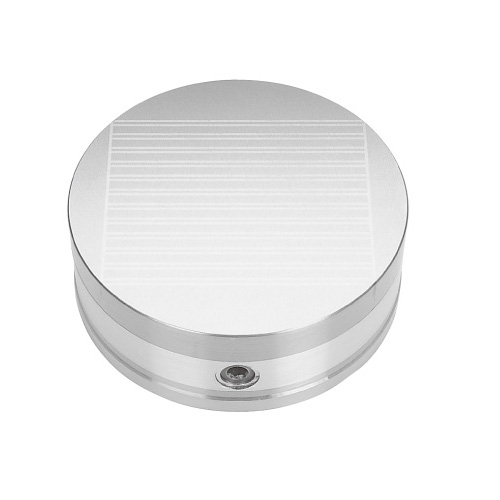

POWERFUL CIRCULAR TYPE PERMANENT MAGNETIC CHUCK
(FOR ALLOY MATERIAL)
Application: For alloy or tungsten carbide material, and other metal materials hard to be held.
Suitable for lathe machine, CNC (4th Axis), inner/outer grinding machining.
Suitable for lathe machine, CNC (4th Axis), inner/outer grinding machining.
Features:
- Specifically designed for grinding operation, the magnetic force can be 3 times higher than the standard type and effective for the special alloy material applications.
- Special transmission mechanism, with ON-OFF switch, keeps accuracy steady.
- Taking a 360° turn from OFF to full ON.

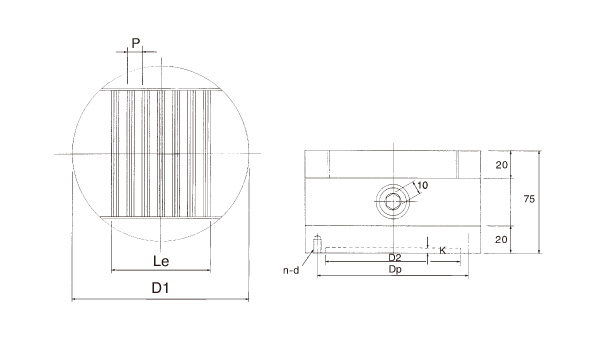

Unit:mm
| Model | Nominal Dimension | Top Plate | Pole Pitch | Bottom Plate | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|
| D | Le | P | D2 | K | Dp | n-d | |||
| HMTR-13 | ø 130 | 130 | 78 | 11.2 (1.6+2+1.6+6) |
100 | 4 | 112 | 4xM6 | 6.5 |
| HMTR-16 | ø 160 | 160 | 100 | 125 | 140 | 4xM8 | 9.8 | ||
| HMTR-20 | ø 200 | 200 | 128 | 160 | 180 | 4xM8 | 15.0 | ||
