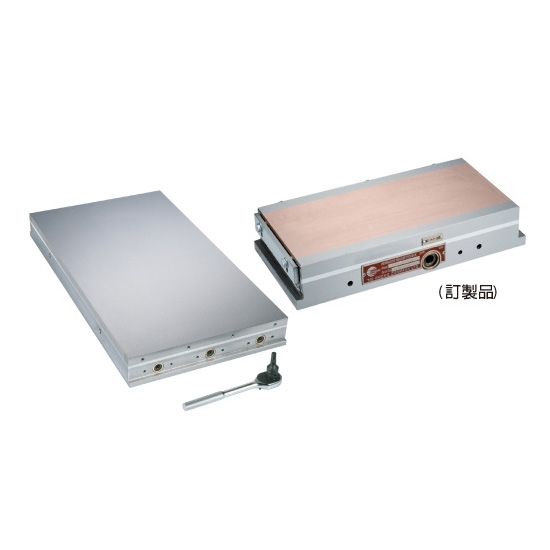

HORIZONTAL MICROPITCH PERMANENT MAGNETIC CHUCK
Product Introduction
HMT-WL 橫型細目永磁夾盤
HORIZONTAL MICROPITCH PERMANENT MAGNETIC CHUCK
Application: CNC engraving/milling machine.
Features:
- Effective to hold the blue belt steel (K7) sized thicker than 0.3mm, and can be set in array to required area.
- Forefront switches for easy operation, and magnetic force can be 360° adjusted.
- Excellent water-resistance, the brazing top plate, steady accuracy.
Unit:mm

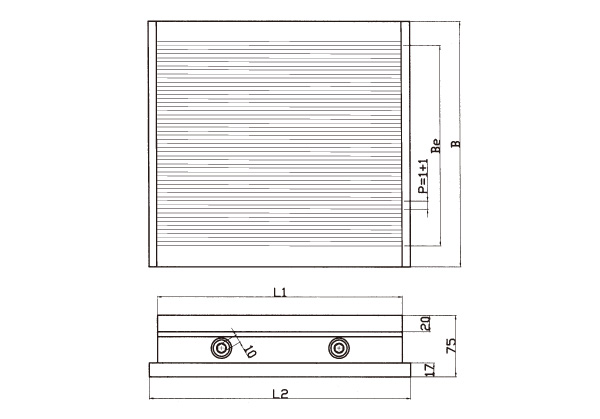

| Model | Nominal Dimension | Top Plate | Pole Pitch | Bottom Plate | Weight (kg) | ||
|---|---|---|---|---|---|---|---|
| B | Be | P | L1 | L2 | |||
| HMT-1530WL | 150x300 | 150 | 110 | 2 (1+1) |
300 | 320 | 25 |
| HMT-3030WL | 300x300 | 300 | 250 | 50 | |||
| HMT-3040WL | 300x400 | 400 | 350 | 67 | |||
| HMT-3050WL | 300x500 | 500 | 450 | 84 | |||
| HMT-3060WL | 300x600 | 600 | 550 | 100 | |||
| HMT-3070WL | 300x700 | 700 | 650 | 117 | |||
| HMT-3090WL | 300x900 | 900 | 850 | 150 | |||
| HMT-30100WL | 300x1000 | 1000 | 950 | 167 | |||
| HMT-4040WL | 400x400 | 400 | 350 | 400 | 420 | 89 | |
| HMT-4050WL | 400x500 | 500 | 450 | 111 | |||
| HMT-4060WL | 400x600 | 600 | 550 | 134 | |||
| HMT-4070WL | 400x700 | 700 | 650 | 155 | |||
| HMT-4080WL | 400x800 | 800 | 750 | 178 | |||
| HMT-40100WL | 400x1000 | 1000 | 950 | 223 | |||
