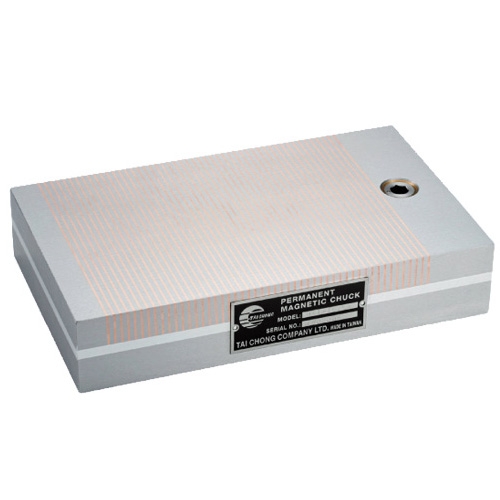

SUPER THIN TYPE PERMANENT MAGNETIC CHUCK
Product Introduction
HMT-W / HMS-W 超薄型永磁夾盤
SUPER THIN TYPE PERMANENT MAGNETIC CHUCK
Application: New type of thin chuck, suitable for grinding machine, EDM and projection of grinding machine.
Features:
- Thin & light design, easy to replace the chuck for mass production, and increasing efficiency by 50%.
- Excellent water resistant, enables to be used in liquid.

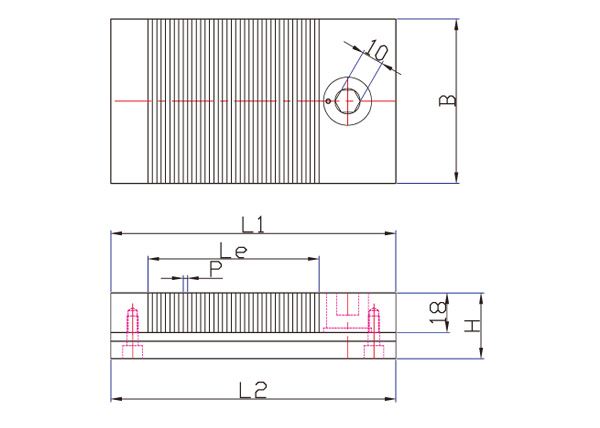

Unit:mm
| Model | Nominal Dimension | Top Plate | Pole Pitch | Bottom Plate | Height | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|
| B | L1 | Le | P | L2 | H | |||
| HMT-0713W | 70x130 | 70 | 130 | 77 | 2 (1+1) |
130 | 30 | 2.2 |
| HMT-0718W | 70x175 | 175 | 122 | 175 | 2.9 | |||
| HMT-1020W | 100x200 | 100 | 200 | 147 | 220 | 5.7 | ||
| HMT-1515W | 150x150 | 150 | 150 | 97 | 150 | 36 | 6.4 | |
| HMT-1520W | 150x200 | 200 | 147 | 220 | 8.5 | |||
| HMT-1525W | 150x250 | 250 | 197 | 270 | 10.6 | |||
| HMS-0713W | 70x130 | 70 | 130 | 77 | 1.4 (0.4+1) |
130 | 30 | 2.2 |
| HMS-0718W | 70x175 | 175 | 122 | 175 | 2.9 | |||
*HMT Copper Pole Pitch. HMS:Stainless Pole Pitch.
* Other specifications can be custom-made upon request.
* Other specifications can be custom-made upon request.
