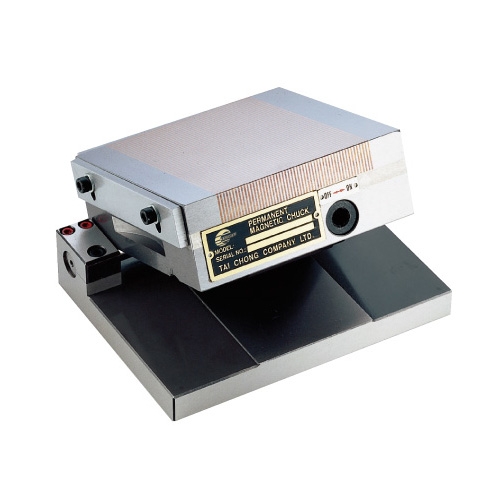

SINE PLATE WITH FINE MAGNETIC CHUCK
Product Introduction
HMT-M 一體超薄正弦磁台
SINE PLATE WITH FINE MAGNETIC CHUCK
Features:
- Special feature with magnetic chuck:
- Can fix tiny parts firmly on the chuck which pitch is only 1mm.

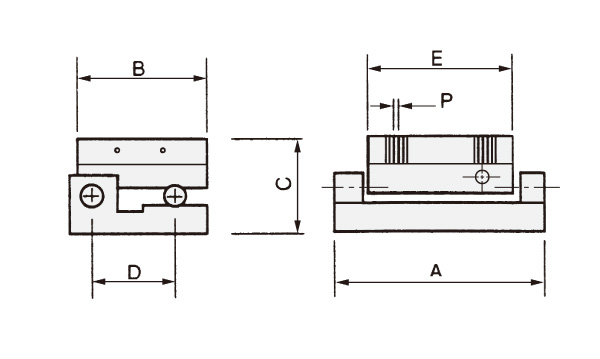

Unit:mm
| Model | A | B | C | D | E | P | Angle | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HMT-M1018S | 225 | 86 | 87 | 75 | 175 | 2(1+1) | 0o~60o | 11.5 |
| HMT-M1515S | 200 | 152 | 87 | 100 | 150 | 14.8 | ||
| HMT-M1530S | 350 | 152 | 87 | 100 | 300 | 28.0 |
