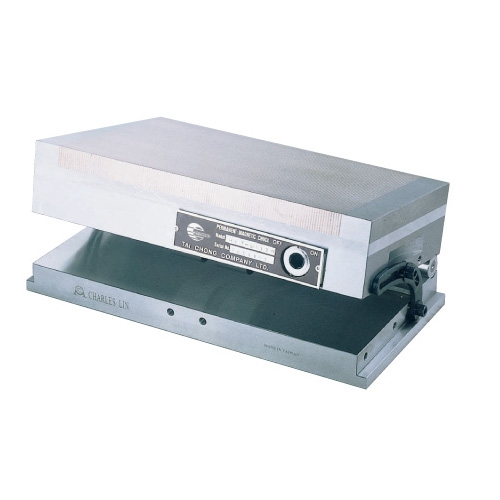

ECONOMY SINE PLATE WITH FINE MAGNETIC CHUCK
Product Introduction
HMT-D 簡式細目正弦磁台
ECONOMY SINE PLATE WITH FINE MAGNETIC CHUCK
Features:
- Permanent magnetic chuck. Removable handle for positive on/off control. side rails, end rails all included.
- All have 200 minute angle steps with 0.005mm(0.0002")tolerance in squareness, parallelism and roll center distances.

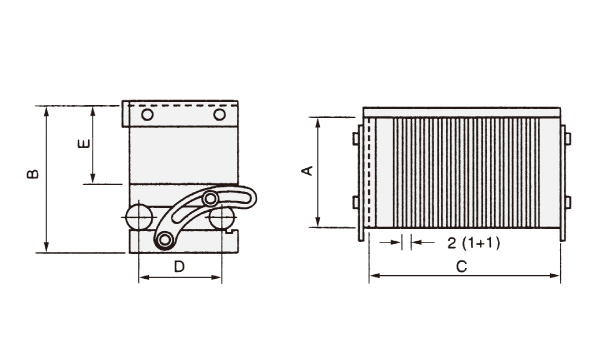

Unit:mm
| Model | A | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| HMT-D1018S | 100 | 86 | 175 | 75 | 47 | 11.5 |
| HMT-D1515S | 150 | 86 | 150 | 100 | 58 | 14.0 |
| HMT-D1530S | 150 | 86 | 300 | 100 | 58 | 28.0 |
