Product Name : POWERFUL ANGULAR PERMANENT MAGNETIC CHUCK
Inquiry
Product Introduction

HMT-B 強力角形永磁夾盤

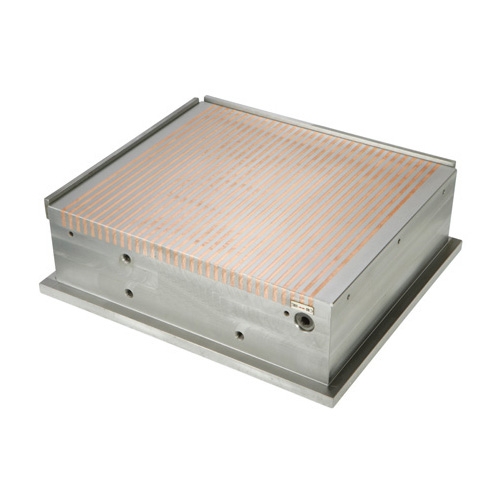

POWERFUL ANGULAR PERMANENT MAGNETIC CHUCK

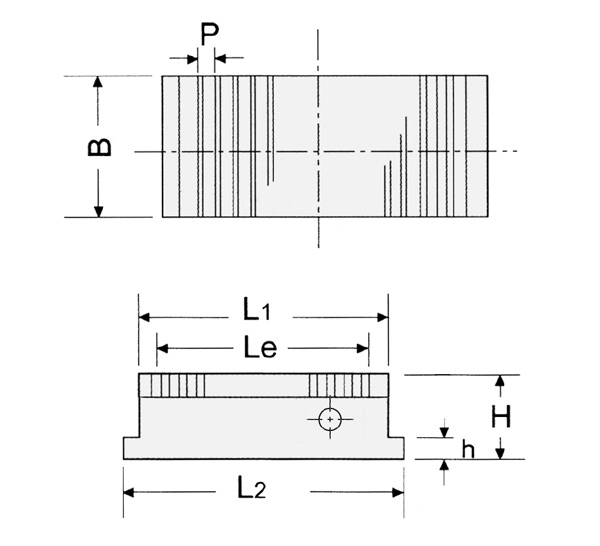

proimages/2014-pro/HMT_B_001.jpg
Application: CNC MILLING MACHINE, ENGRAVING MACHINE, GRINDING MACHINE, HEAVY DUTY CUTTING MACHINE...ETC.
Features:
  • Strong magnetic force, increases 20% higher than standard type.
  • Water-resistance property, enables to be used in liquid.
  • Special magnetism construction won't magnetize the workpieces.
  • Improved transmission mechanism to increase the durability 2 times more.
  • Monocoque body, ensures accuracy steady.

Unit:mm
ModelNominal
Dimension		Top PlatePole PitchBottom PlateHeightWeight
(kg)
BL1LePL2hH(kg)
HMT-1018B 100x175 100 175 128 11.2
(1.6+2+1.6+6)		 195 13 65 8
HMT-1030B 100x300 300 246 320 13
HMT-1325B 125x250 125 250 196 270 14
HMT-1515B 150x150 150 150 106 170 10
HMT-1530B 150x300 300 246 320 19
HMT-1535B 150x350 350 296 370 22
HMT-1540B 150x400 400 346 420 26
HMT-1545B 150x450 450 396 470 29
HMT-2020B 200x200 200 200 150 220 17
HMT-2030B 200x300 300 246 320 26
HMT-2040B 200x400 400 346 420 34
HMT-2045B 200x450 450 390 470 38
HMT-2050B 200x500 500 446 520 43
HMT-2060B 200x600 600 446 620 51
HMT-2525B 250x250 250 250 196 270 27
HMT-2530B 250x300 300 246 320 32
HMT-2540B 250x400 400 346 420 43
HMT-2550B 250x500 500 446 520 53
HMT-3030B 300x300 300 300 246 320 20 75 44
HMT-3040B 300x400 400 346 420 59
HMT-3050B 300x500 500 446 520 74
HMT-3060B 300x600 600 543 11.2
(5.2+6)		 620 88
HMT-3090B 300x900 900 834 920 132
HMT-4040B 400x400 400 400 346 420 79
HMT-4050B 400x500 500 446 520 98
HMT-4060B 400x600 600 543 620 117
HMT-4080B 400x800 800 733 820 156
HMT-40100B 400x1000 1000 935 1020 191955
