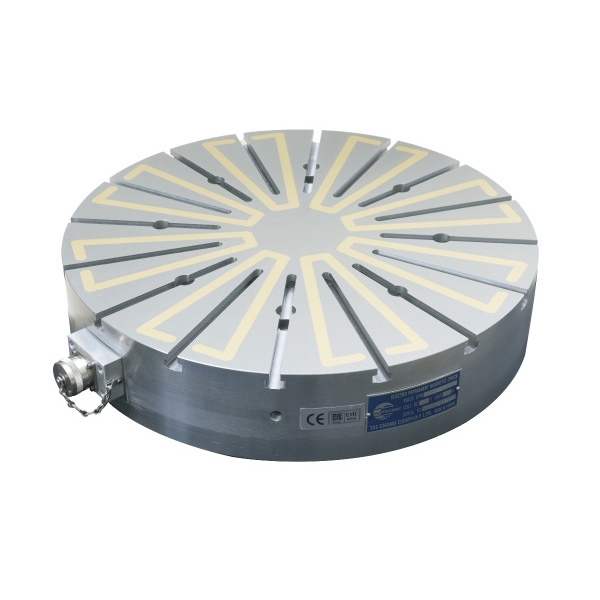

EPMR-ST-ROUND STAR-POLE ELECTRO-PERMANENT MAGNETIC CHUCK
Product Introduction
EPMR-ST 圓形星目電永磁夾盤
ROUND STAR-POLE ELECTRO-PERMANENT
MAGNETIC CHUCK

Application: Suitable for heavy duty milling and grinding on lathe, vertical lathe, rotary grinding machine...etc.
Features:
- Super powerful magnetic force, suitable for thick workpieces.
- Magnetic density beyond 3000 gauss.
- Top plate with T slot is able to work with mould and various workpieces.
- Excellent water resistant and high insulation resistance.
- Average magnetic force beyond 18 kgf/cm2 .
Unit:mm
Model | Nominal Dimension | Top Plate | pole NO. | Bottom Plate | Height | Weight (kg) | Controller | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
D | De | de | D2 | K | n | Dp | H | |||||
EPMR-50ST | ø500 | ø500 | 470 | 100 | 8 | ø200 | 5 | 8 | ø300 | 105 | 125 | EPM-30S |
EPMR-60ST | ø600 | ø600 | 560 | 120 | ø300 | ø400 | 180 | |||||
EPMR-80ST | ø800 | ø800 | 750 | 160 | 12 | ø400 | 12 | ø600 | 320 | |||
EPMR-100ST | ø1000 | ø1000 | 950 | 200 | ø500 | ø800 | 500 | |||||
EPMR-120ST | ø1200 | ø1200 | 1150 | 300 | 18 | ø700 | 18 | ø1000 | 720 |
*規格外的產品,可接受訂製。
*Other specifications can be custom-made upon request.
