EPM-ZW-SUPER POWERFUL MICROPITCH
Product Introduction
EPM-ZW 細目超強力電永磁夾盤

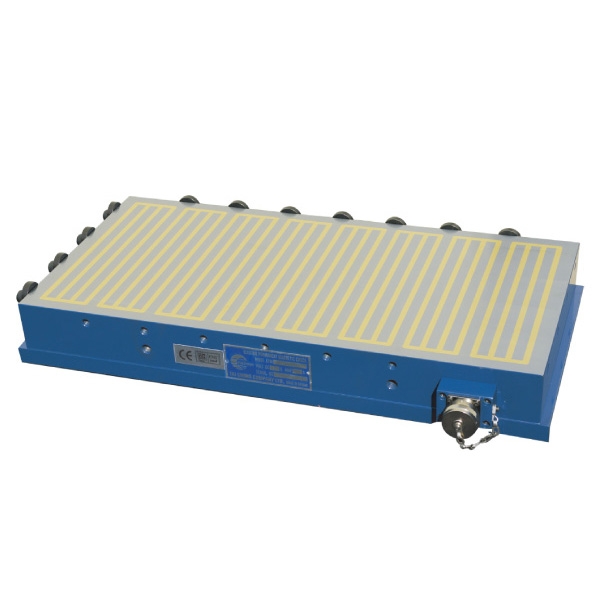

SUPER POWERFUL MICROPITCH ELECTRO-PERMANENT MAGNETIC CHUCK

Application: Suitable for heavy duty,CNC machining center,milling machine, milling planer,CNC milling machine.
Features:
- Monocoque of bottom and top plate.
- Suitable for high precision, long time using and heavy duty.
- Light weight design,it could greatly reduce mechanical wear.
- Suitable for thin workpieces around 15~30mm in height.
- Average magnetic density beyond 3000 gauss.
- Excellent water resistant & high insulation resistance.
- Average magnetic force beyond18kgf/cm2.
Unit:mm
Model | Nominal Dimension | Top Plate | Top Plate | Bottom Plate | Weight (kg) | Controller | ||||
---|---|---|---|---|---|---|---|---|---|---|
B1 | Be | L1 | Le | P | B2 | L2 | ||||
EPM-2050ZW | 200x520 | 200 | 168 | 520 | 486 | 18 (6+12) |
204 | 540 | 62 | EPM-30S |
EPM-2550ZW | 250x520 | 250 | 218 | 254 | 78 | |||||
EPM-3060ZW | 300x600 | 300 | 268 | 600 | 571 | 304 | 620 | 108 | ||
EPM-4040ZW | 400x400 | 400 | 368 | 400 | 352 | 404 | 420 | 96 | ||
EPM-4050ZW | 400x520 | 520 | 486 | 540 | 120 | |||||
EPM-4080ZW | 400x810 | 810 | 760 | 820 | 192 | |||||
EPM-40100ZW | 400x1000 | 1000 | 948 | 1020 | 240 | |||||
EPM-40120ZW | 400x1200 | 1200 | 1155 | 1220 | 288 | |||||
EPM-5050ZW | 500x520 | 500 | 468 | 520 | 486 | 504 | 540 | 150 | ||
EPM-50100ZW | 500x1000 | 1000 | 948 | 1020 | 300 | |||||
EPM-50120ZW | 500x1200 | 1200 | 1155 | 1220 | 360 | |||||
EPM-50150ZW | 500x1500 | 1500 | 1447 | 1520 | 450 | |||||
EPM-6060ZW | 600x600 | 600 | 568 | 600 | 571 | 604 | 620 | 216 | ||
EPM-60100ZW | 600x1000 | 1000 | 948 | 1020 | 360 | |||||
EPM-60120ZW | 600x1200 | 1200 | 1155 | 1220 | 432 | |||||
EPM-60150ZW | 600x1500 | 1500 | 1447 | 1520 | 540 | |||||
EPM-80100ZW | 800x1000 | 800 | 768 | 1000 | 948 | 804 | 1020 | 480 | ||
EPM-80150ZW | 800x1500 | 1500 | 1447 | 1520 | 720 | |||||
EPM-100100ZW | 1000x1000 | 1000 | 968 | 1000 | 948 | 1004 | 1020 | 600 | ||
EPM-100150ZW | 1000x1500 | 1500 | 1447 | 1520 | 900 | |||||
EPM-100200ZW | 1000x2000 | 2000 | 1948 | 2020 | 1200 |
*本規格外之尺寸,歡迎訂製。 *Other specifications can be custom-made upon request.
