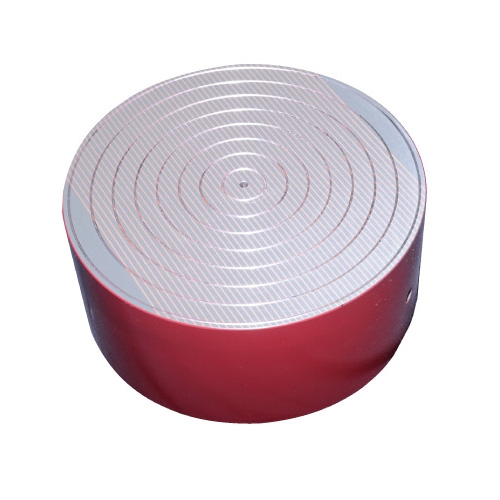

MICROPITCH STRIPE ROUND TYPE ELECTROMAGNETIC CHUCK
Product Introduction
ELCR-L 細目直條紋圓型電磁夾盤
MICROPITCH STRIPE ROUND TYPE ELECTROMAGNETIC CHUCK
Application: For rotary grinder, cylindrical grinder, lathe, and light duty cutting machining.
Features:
- Uniform holding power on the top plate, ensures parallel and vertical accuracy on the top plate and O.D of workpieces.
- The brazing top plate ensures accuracy steady.
Unit:mm

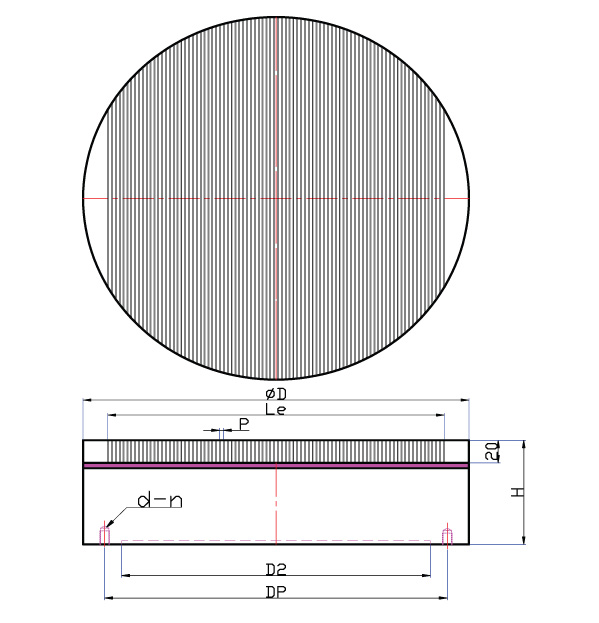

| Model | Nominal Dimension | Top Plate | Pole Pitch | Bottom Plate | Height | Voltage (VDC) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Le | P | D2` | K | n | d | Dp | H | |||
| ELCR-16L | ø160 | 160 | 110 | 4 (1+3) |
125 | 4 | M8 | 4 | 140 | 110 | 90 |
| ELCR-20L | ø200 | 200 | 140 | 160 | 180 | ||||||
| ELCR-25L | ø250 | 250 | 190 | 200 | M10 | 224 | |||||
| ELCR-32L | ø320 | 320 | 260 | 250 | 280 | 120 | |||||
| ELCR-36L | ø360 | 360 | 300 | 280 | 320 | ||||||
| ELCR-40L | ø400 | 400 | 340 | 315 | 355 | ||||||
| ELCR-50L | ø500 | 500 | 440 | 350 | M12 | 8 | 400 | ||||
| ELCR-60L | ø600 | 600 | 540 | 450 | 500 | ||||||
*本規格外之尺寸，歡迎訂製。 *Other specifications can be custom-made upon request.
