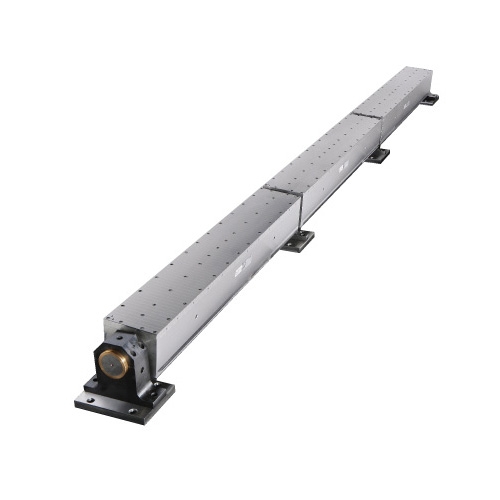

LARGE CONNECTING ROTARY TYPE ELECTROMAGNETIC CHUCK
Product Introduction
ELC-UAT 大型連結式可傾電磁夾盤
LARGE CONNECTING ROTARY TYPE ELECTROMAGNETIC CHUCK
Application: Suitable for grinding wood slice cutters, workpieces with angles, and knife edge.
Features:
- Integrated molding of machine body and rotary spindle(ø100). Excellent rigidity.
- Several units can connect together for use.
- When angle is adjusted, it can be used along with speed reducer.
- The connecting clearance between chucks is 32mm.
Unit:mm

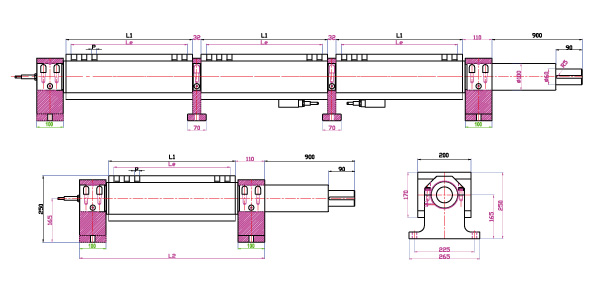

| Model | Nominal Dimension | Top Plate | Pole Pitch | Length | Voltage (VDC) | Current (A) | Weight (kg) |
|
|---|---|---|---|---|---|---|---|---|
| L1 | Le | P | L2 | |||||
| ELC-20100UAT | 200x1000 | 1000 | 934 | 19 (3+16) |
1220 | 90 | 0.93 | 270 |
| ELC-20120UAT | 200x1200 | 1200 | 1124 | 1420 | 1.00 | 319 | ||
| ELC-20130UAT | 200x1300 | 1300 | 1238 | 1520 | 1.30 | 342 | ||
| ELC-20140UAT | 200x1400 | 1400 | 1352 | 1620 | 1.56 | 365 | ||
| ELC-20150UAT | 200x1500 | 1500 | 1428 | 1720 | 1.97 | 387 | ||
