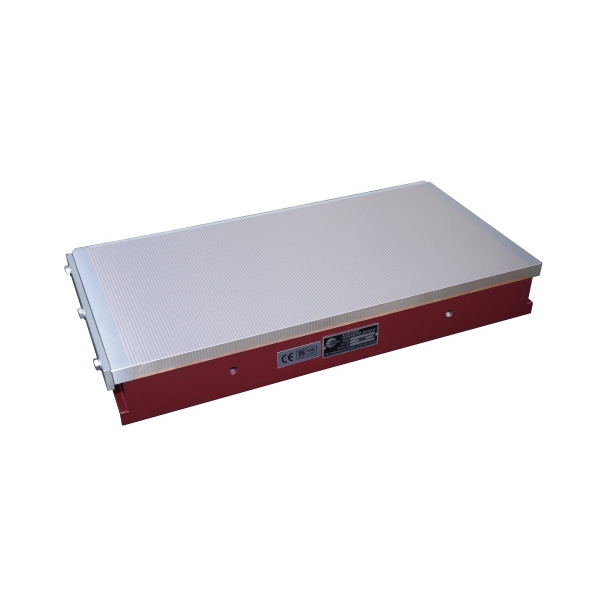

MICROPITCH ELECTROMAGNETIC CHUCK ELC-BW

Application: Suitable for grinding and light cutting for thin workpieces with long dimension.

Features:

The brazing top plate makes accuracy stable.
Light weight design,excellent rigidity on the structure of bottom plate.
The accuracy variation stays within 0.003mm when the chuck, smaller than 300X600 (included), uses 3 hrs continuously.
Excellent water resistant and high insulation resistance.

《Ref.》 For small workpieces, please choose permanent magnetic chuck, such as HMT-A, HMT-B, HMTW....etc.

Unit:mm

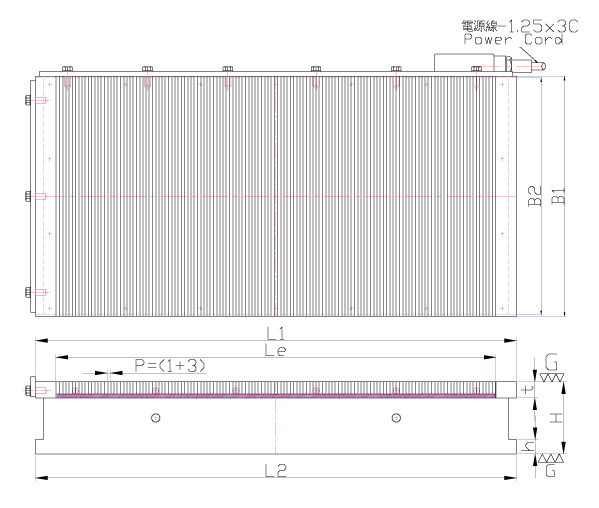

Model	Nominal Dimension	Top Plate				Bottom Plate			Height	Voltage (VDC)	Current (A)	Weight (kg)
Model	Nominal Dimension	B	L1	Le	t	B2	L2	h	H	Voltage (VDC)	Current (A)	Weight (kg)
ELC-1530BW	150x300	150	300	253	20	150	300	20	85	90	0.30	28
ELC-1535BW	150x350		350	301			350				0.36	33
ELC-1540BW	150x400		400	349			400				0.44	48
ELC-1545BW	150x450		450	401			450				0.57	54
ELC-2040BW	200x400	200	400	349		200	400				0.61	51
ELC-2045BW	200x450		450	401			450				0.71	58
ELC-2050BW	200x500		500	449			500				0.93	64
ELC-2550BW	250x500	250	500	449		250	500				1.09	80
ELC-3060BW	300x600	300	600	549		296	600				1.05	115
ELC-3070BW	300x700	300	700	649		296	700				1.11	134
ELC-4060BW	400x600	400	600	549	25	396	600		90		1.45	162
ELC-4080BW	400x800		800	749			800				2.10	216
ELC-40100BW	400x1000		1000	949			1000				2.35	270
ELC-5075BW	500x750	500	750	697		496	750				2.50	254
ELC-50100BW	500x1000	500	1000	949		496	1000				3.10	338
ELC-6075BW	600x750	600	750	697		596	750				2.60	304
ELC-60100BW	600x1000	600	1000	949		596	1000				4.20	405
ELC-7075BW	700x750	700	750	697		696	750				3.62	354
ELC-70100BW	700x1000	700	1000	949		696	1000				4.98	473
ELC-8075BW	800x750	800	750	697		796	750				4.98	405
ELC-80100BW	800x1000	800	1000	949		796	1000				6.78	540

*本規格外之尺寸，歡迎訂製。 *Other specifications can be custom-made upon request.
